I’ve ran into a lot of cases where RPG Maker was missing some functionality which I found to be almost mandatory. Because of that, I kept adding functionality I’d want to have to make my life easier, and am now sharing some of it with you.
Setup
Read Script Layer, as this requires a very simple script change.
Save this image, name it debug_collision.png and move it into Graphics/Tilesets:
Create a new script, and have it load second to last, before Main.

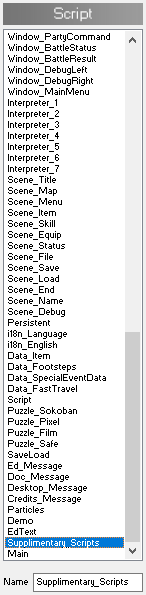

Should look like this if you’re doing it through the editor:
Then copy the contents of this code block into it:
# This script monkeypatches some things in the vanilla scripts to enable some quality of life functionality.
# Read the documentation where you got the script from for additional information.
class Game_Event
# Check if the event is not earased, and has any commands to execute in the current list.
def execution_valid?()
return !(@erased || @list.nil? || (@list.count { |c| c.code != 108 && c.code != 408 && c.code != 0 } == 0))
end
end
class Game_Map
# Returns an event by ID
def event_by_id(event_id)
return @events[event_id]
end
# Find the first event with the given name, returning a pair of its ID and its instance
def event_by_name(event_name)
return *@events.find { |id, e| e.name == event_name }
end
end
class Interpreter
# Trigger an event on the map by name
# Does nothing if there's no event with that name
# Having multiple events with the same name will trigger the one with the lowest ID
# Unlike `start`, it follows common event behavior, where the event starts executing when it's called, and not when the current event is done
# And unlike common events, the commands are executed within the context of the called event, instead of the context of the calling event
def call_event(event_name)
ev_id, ev = $game_map.event_by_name(event_name)
return _call_event(ev)
end
# Same as `call_event`, but by ID instead
def call_event_by_id(event_id)
ev = $game_map.event_by_id(event_id)
return _call_event(ev)
end
# Returns whether calling the given on map event is valid
# Checks if the event with the name exists, and that it has commands to execute
# While `call_event` already does that, this method allows for setup before actually calling the event
def can_call_event(event_name)
_, ev = $game_map.event_by_name(event_name)
return ev && ev.execution_valid?
end
# Same as `can_call_event`, but by ID instead
def can_call_event_by_id(event_id)
ev = $game_map.event_by_id(event_id)
return ev && ev.execution_valid?
end
# Get another event's self switch
def get_others_self_switch(event_name, switch)
id, _ = $game_map.event_by_name(event_name)
$game_self_switches[[$game_map.map_id, id, switch]]
end
# Set another event's self switch
def set_others_self_switch(event_name, switch, state)
id, = $game_map.event_by_name(event_name)
$game_self_switches[[$game_map.map_id, id, switch]] = !!state
$game_map.need_refresh = true
end
private
def _call_event(ev)
# Return false if the event wasn't found, was erased, or has no commands in the list
return false if !ev || !ev.execution_valid?
# Copied off command_117
@child_interpreter = Interpreter.new(@depth + 1)
@child_interpreter.setup(ev.list, ev.id, ev.name)
# Found and called event, return true so the caller knows it actually executed
# Very useful in script condition commands
return true
end
end
module RPG
module Cache
class << self
alias :_og_load_bitmap :load_bitmap
EMPTY_BITMAP = Bitmap.new(1, 1)
def load_bitmap(path, filename, hue = 0)
# Return an empty bitmap for files starting with a `!` to allow placeholders that shouldn't appear in game
return EMPTY_BITMAP if filename.start_with?("!")
# Wrap and keep hue positive to prevent memory leaks and redundant memory usage
hue %= 360
hue += 360 if hue < 0
return _og_load_bitmap(path, filename, hue)
end
end
end
end
# Simplify entering proper debug mdoe
$debug = File.exists?("debug_tester.dat") unless $debug
# Debug specific stuff past this point
return unless $debug
class Collision_View
TILE_OFFSET = 384
GAME_WIDTH = 640
GAME_HEIGHT = 480
attr_reader :enabled
def initialize()
@enabled = false
end
def update()
if Input.trigger?(Input::R)
@enabled ? hide() : show()
end
if @enabled
@map.ox = $game_map.display_x / 4
@map.oy = $game_map.display_y / 4
end
end
def show()
dispose()
@enabled = true
@vieport = Viewport.new(0, 0, GAME_WIDTH, GAME_HEIGHT)
@vieport.z = 999
@map = Tilemap.new(@vieport, GAME_WIDTH / 32 + 2, GAME_HEIGHT / 32 + 2)
@map.tileset = RPG::Cache.tileset('debug_collision')
@map.map_data = buildMapData()
Graphics.frame_reset()
end
def hide()
dispose()
@enabled = false
end
def dispose()
@vieport.dispose() if @vieport
@vieport = nil
@map = nil
end
def isEventPassable(ev)
return true if ev.through
return false if ev.tile_id == 0 && ev.character_name.empty?
return false if $game_map.passages[ev.tile_id] & 0x0f == 0x0f
return false unless ev.character_name.empty?
return true
end
DIRS = [
2, # DOWN
4, # Left
6, # Right
8 # UP
]
def buildMapData()
# Temporarily move the player out of the way as to not interfere with collision checks
px, py = $game_player.x, $game_player.y
$game_player.x = -1
$game_player.y = -1
map_data = Table.new($game_map.width, $game_map.height)
$game_map.width.times do |x|
$game_map.height.times do |y|
flag = 0
DIRS.each do |dir|
flag += 1 << (dir / 2 - 1) unless $game_player.passable?(x, y, dir)
end
map_data[x, y] = TILE_OFFSET + flag if flag > 0
end
end
# Put the player back
$game_player.x = px
$game_player.y = py
return map_data
end
end
$collision_view = Collision_View.new()
class Scene_Map
alias :_og_transfer_player :transfer_player
def transfer_player()
$collision_view.hide()
_og_transfer_player()
end
end
class Spriteset_Map
alias :_og_update :update
def update()
_og_update()
$collision_view.update()
end
end
class Game_Player
alias :_og_passable? :passable?
def passable?(x, y, d)
return true if Input.press?(Input::CANCEL)
return _og_passable?(x, y, d)
end
end
module Graphics
@@game_modification_time = File.stat("Data/Actors.rxdata").mtime
class << self
alias :_og_update :update
def update()
if File.stat("Data/Actors.rxdata").mtime != @@game_modification_time && $scene.class == Scene_Map
sleep(0.1) # to give rmxp a chance to save the file properly
$data_actors = load_data("Data/Actors.rxdata")
$data_items = load_data("Data/Items.rxdata")
$data_armors = load_data("Data/Armors.rxdata")
$data_animations = load_data("Data/Animations.rxdata")
$data_tilesets = load_data("Data/Tilesets.rxdata")
$data_common_events = load_data("Data/CommonEvents.rxdata")
RPG::Cache.clear()
$game_map.setup($game_map.map_id)
$scene = Scene_Map.new()
$game_player.center($game_player.x, $game_player.y)
@@game_modification_time = File.stat("Data/Actors.rxdata").mtime
end
_og_update()
end
end
end
